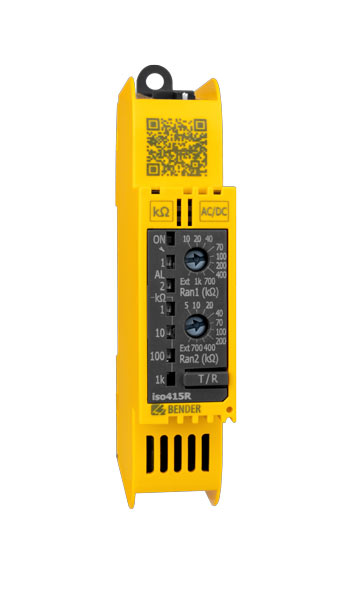

ISOMETER® iso415R

ISOMETER® iso415R

  • Insulation monitoring device for AC and DC IT systems
  • Application: control circuits
  • Two response values adjustable via rotary switch
  • Measured value display via LED band
  • Very compact - only 1TE width (18 mm)

The ISOMETER® is an insulation monitoring device according to IEC 61557-8 for IT systems. It monitors the insulation resistance of unearthed 3(N)AC, AC and DC main and control circuits (IT systems).

The DC components existing in AC/DC systems can have an influence on the response behaviour if an insulation fault occurs downstream of rectifiers with an electrolytic capacitor.

The separate supply voltage of the iso415R-24 also makes it possible to monitor a de-energised system.

  • Características
  • Información de pedido
  • Descargas
  • Monitoring of the insulation resistance for unearthed 3(N)AC, AC and DC systems with galvanically connected rectifiers
  • Automatic adaptation to the system leakage capacitance up to 25 μF
  • Response time ≤ 6 s at Ce = 1μF and Rf = Ran/2
  • Automatic device self test with connection monitoring
  • Two separately adjustable response value ranges from 5 kΩ…1000 kΩ
  • Alarms are output via LEDs (AL1, AL2) and an alarm relay
  • Selectable N/C or N/O relay operation 1
  • Selectable start-up delay, response delay and delay on release 1
  • Fault memory 1
  • RS-485 interface with Modbus RTU protocol
  • NFC interface

    1 Only adjustable via Modbus RTU or Bender App.

Variantes de ISOMETER® iso415R


TypeSupply voltage UsArt. No.
iso415R-24DC 24 VB71602000
iso415R-2AC/DC 100…240 VB71603000

Descargas para ISOMETER® iso415R
