VIT-AFSBY

VIT-AFSBY

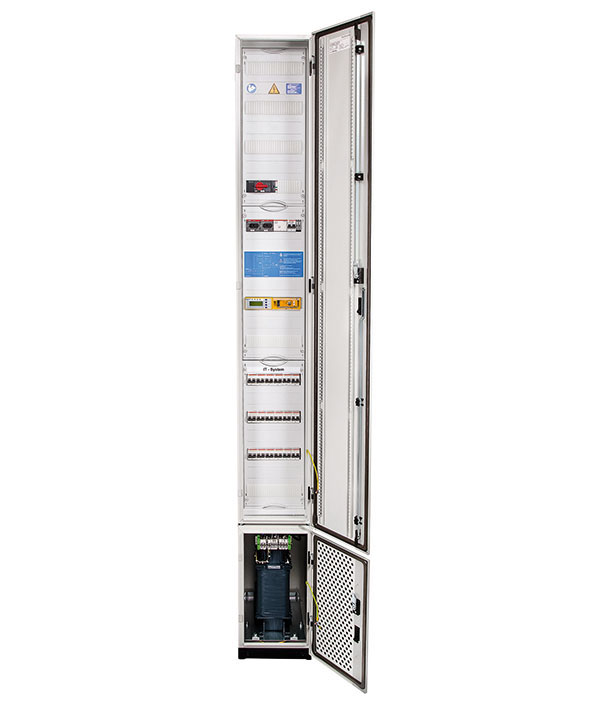

Series VIT-AFSBY distribution boards are equipped with an isolation transformer as well as with a changeover and monitoring module including all necessary monitoring components as to DIN VDE 100-710 for IT systems:

  • Changeover device and voltage monitoring
  • Insulation monitoring
  • Load and temperature monitoring
  • Insulation fault locator
  • Bypass Switch

The secondary side of the isolation transformer is equipped with at least 6 two-pole circuit breakers. Group 2 sockets are being connected to these.
In order to reduce or avoid noise disturbance by air circulating fans, waste heat is conducted by free convection.

Características

  • Automatic changeover and monitoring device ATICS® including monitoring of i.e.:
    - Voltage of incoming supply
    - Output voltage
    - Correct operating times
    - Changeover times
    - Insulation resistance
    - Load current
    - Transformer temperature
    - At least 6 two-pole circuit breakers B16A
    - Insulation fault monitoring device (EDS)
    - Bypass switch
    - Isolating transformer (3150VA – 8000VA)
  • Variable changeover time t ≤ 0.5 …15s
  • Exchange of information by means of bus technology
  • Connection facility for remote alarm and operator panels MK2430 / TCP
  • Sheet steel housing as to DIN VDE 0100-710 (VDE 0100-710): 2002-11, section 710.51.2.2.
  • Designed in accordance with the requirements of applicable standards
  • Voluntary certification of changeover device by the independent German technical service, testing and inspection organization (TÜV)

Aplicaciones

  • For intesive care units with equiment for insulaion fauls location

VIT-AFSBY Variante(s)

TypePowerWeightLoss*
VIT-AFSBY-112S-5000VAca.145kgca. 200W
VIT-AFSBY-112S-6300VAca.150kgca. 210W
VIT-AFSBY-112S-8000VAca.160kgca. 230W
VIT-AFSBY-114S-5000VAca.155kgca. 200W
VIT-AFSBY-114S-6300VAca.160kgca. 210W
VIT-AFSBY-114S-8000VAca.170kgca. 230W

* Specification for energy efficient „Green Line“ Transformers.

Basic types

VIT-ANumber of circuitsDrawing No.Art No.
-112S-xxxx-129700089B101944**
-114S-xxxx-129700090B101945**
-114S-xxxx-189700091B101946**
-114S-xxxx-249700092B101947**

** Without transformer, the required power must be specified.
Other versions on request.

Descargas para VIT-AFSBY

TipoNombreTamañoIdiomaSello de tiempoD-/B-Número
Datos técnicos VIT-AFSBY 481.8 KB DE2019/05/13 10:31:3413.05.2019 10:31:34D00198
Gama de productos Quadri di isolamento e distribuzione per sistemi IT-M in locali medici di gruppo 2 conformi alla nuova CEI 64-8;V2:2015-08 1.3 MB IT2019/05/13 10:31:2813.05.2019 10:31:28
Gama de productos Produktübersicht IT-System Verteiler 850.3 KB DE2019/05/13 10:30:5613.05.2019 10:30:56
Gama de productos IT Panels 1.0 MB EN2019/05/13 10:31:0013.05.2019 10:31:00
